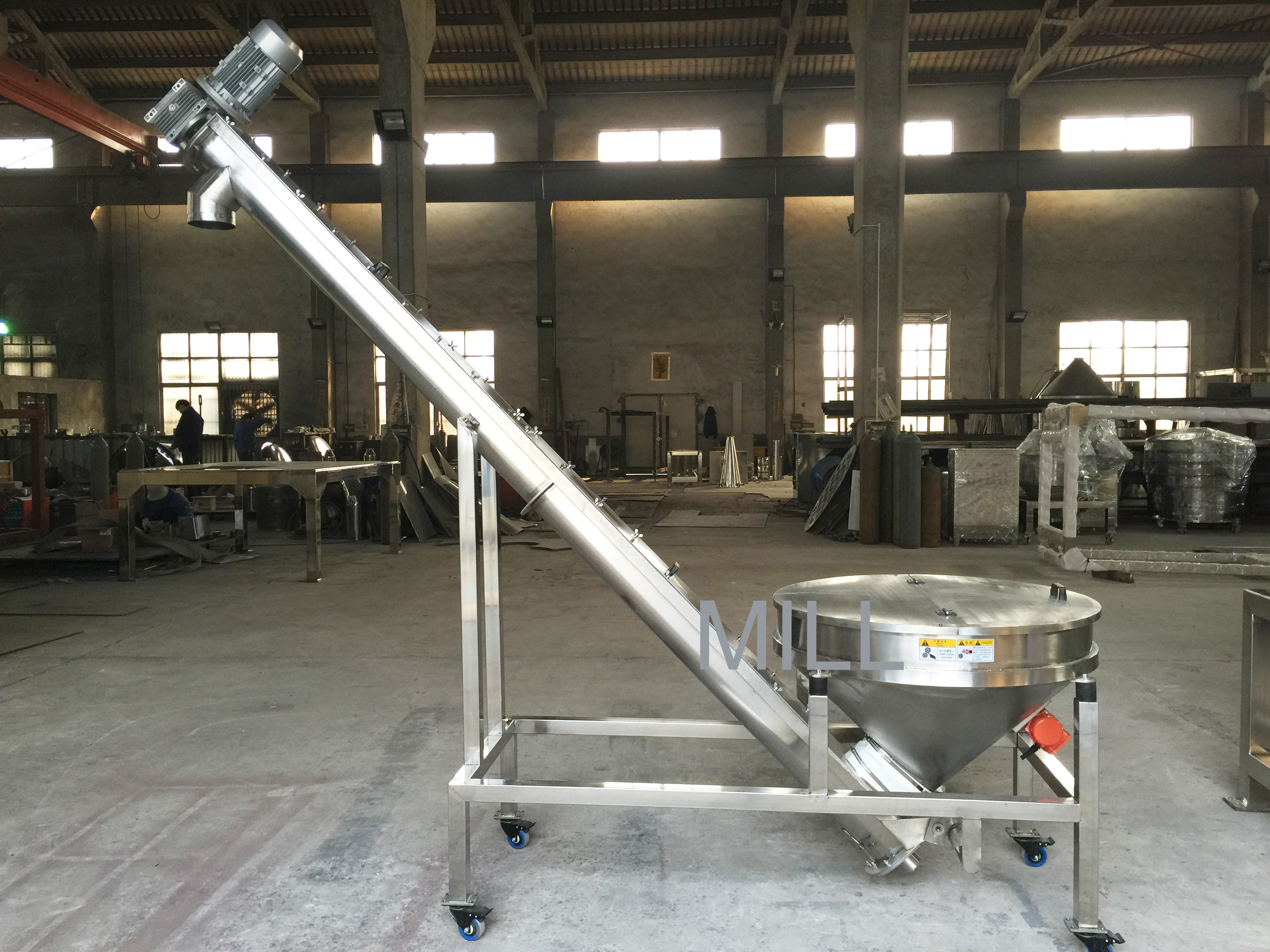

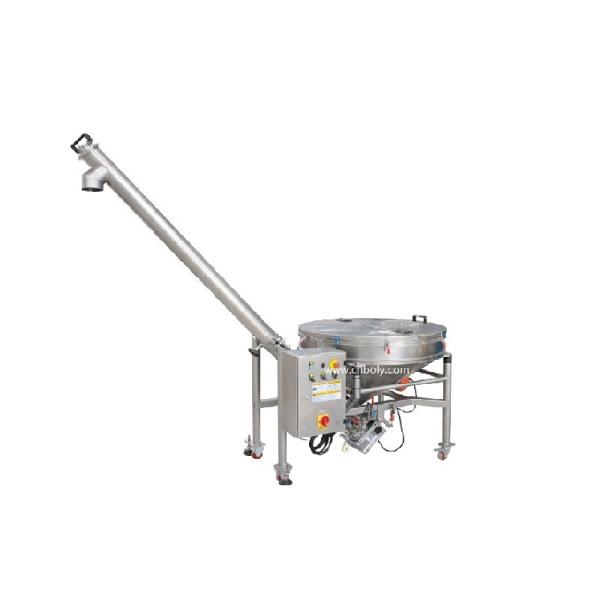

Stainless steel conveyor system inclined tubular hopper vacuum conveyor
Product Description
This Vibrating Screw Charging Machine can convey sorts of material. Combined with the package-machine
of our company, it can do material situation tracing. Also can be used separately. Complete machine made
in stainless steel, except for the electrical machine, gearing, and the framework.
Characteristics:

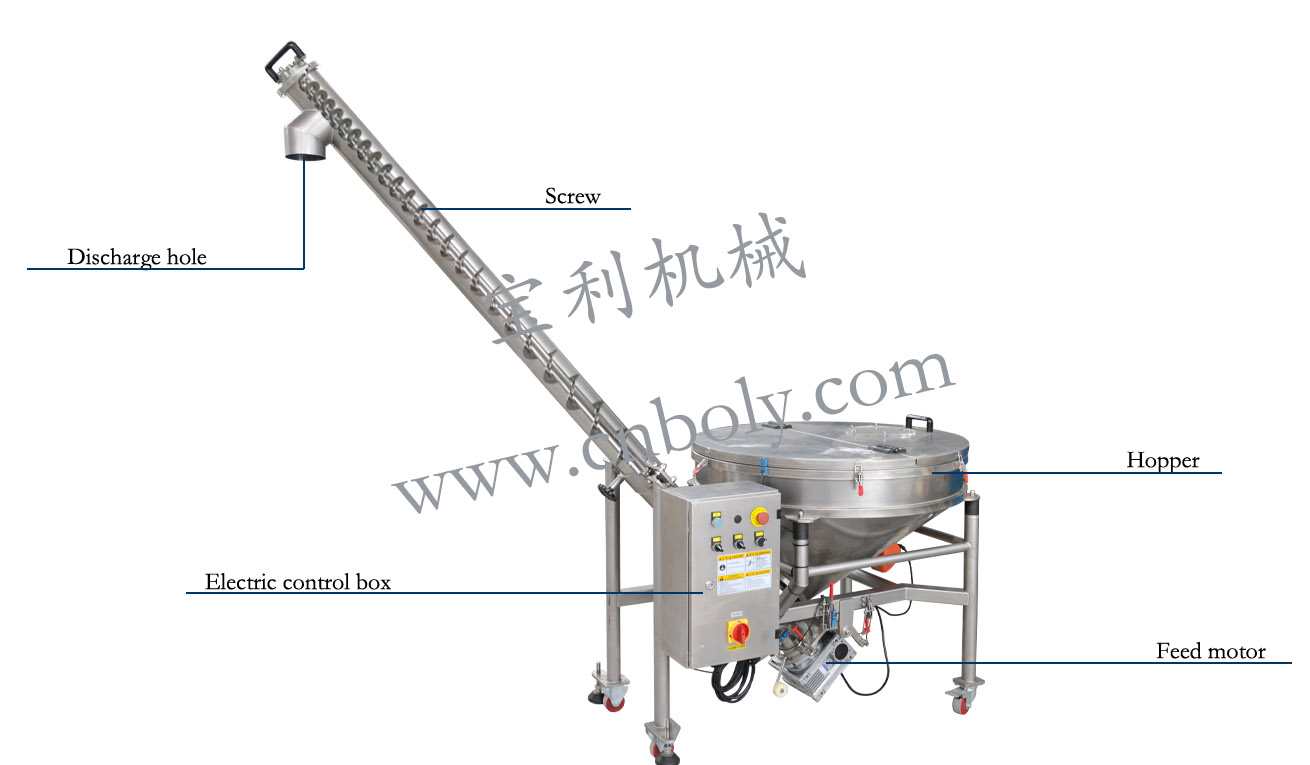

lVibrating screw feeding machine is composed of double motor, feeding motor, vibrating motor and each
switch control.
lHopper is adjustable and vibrational which make material to be flowing easily. It is good to material.
lHopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.
lCharacteristic dustproof, bearing won’t be polluted by the dust and powder.
lTo cleanup scrapped materials conveniently and design the machine to be: Discharging the material
reversally, storing materials at the bottom of hopper pipe, taking out the whole screw.
Technical Data:
| Model | Capacity | Speed | Inverter | Pipe Diameter | Power | Weight | Hopper Volume |
| JB-3 | 3m3/h | 20-140 | Select | φ114 | 0.77W | 130kg | 200L |
| JB-5 | 5 m3/h | 20-140 | Select | φ141 | 1.57KW | 170kg | 200L |
| JB-6 | 6 m3/h | 20-140 | Select | φ159 | 2.26KW | 200kg | 200L |
| JB-8 | 8 m3/h | 20-140 | Select | Φ168 | 3.06KW | 220kg | 200L |
| JB-10 | 12 m3/h | 20-140 | Select | Φ219 | 4.06KW | 270kg | 200L |
FAQ
If you want to send inquriy to me about our Stainless steel conveyor system inclined tubular hopper vacuum conveyor, could you please tell me?
1 What material you want to convey?
2 What capacity you expect ? (kg/h)
3 What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
Then our communication will be more efficient.
